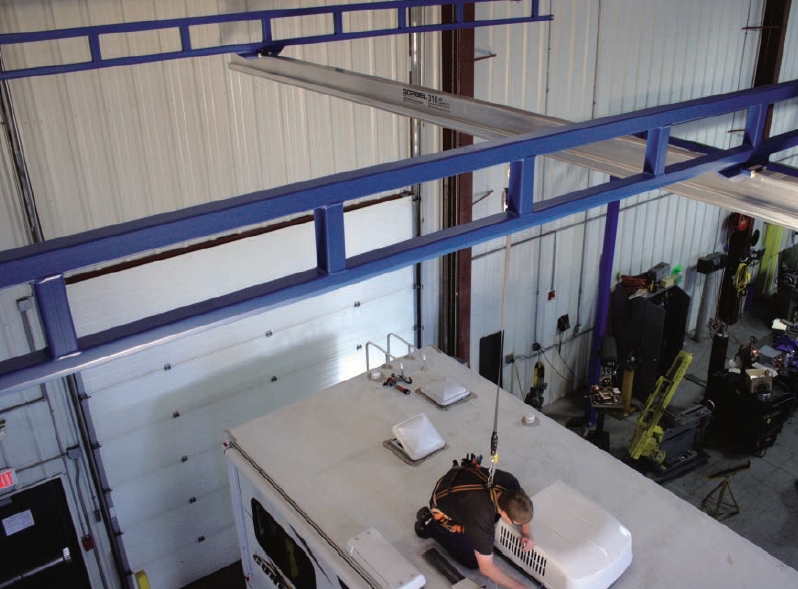

Tether Track Fall Arrest Anchor System

Tether Track Rigid Rail Fall Arrest Anchor Systems are a cost effective way to reduce the risk of injury in elevated work environments. Standard systems are designed to support multiple workers, each weighing up to 310 lbs. Heavier systems can also be custom engineered.

Our rigid rail anchor systems are designed by qualified engineers to exceed the OSHA 1926 Subpart M Construction standard as well as ANSI Z359 Fall Protection Code using a maximum off-vertical loading of 30-degrees. This strict design criteria means that our track supports the full impact of falls vertically and also at a 30-degree angle. That's important for applications where the risk is to fall off the side of an object rather than straight down.

All Tether Track Systems by Gorbel also meet or exceed NIOSH guidelines.


Bridge and Monorail Systems:
  • Available in Free Standing or Ceiling Mounted
  • Unlimited monorail and runway lengths
  • 18' span for bridge anchor systems
  • Less fall clearance distance than wire rope systems
  • Reduced risk of secondary fall injuries
  • Easy to install
  • Supports multiple workers up to 310 lbs each
  • Longer distances between support centers
  • Systems can be customized to accommodate almost any application


Fold Away and Swing Arm Systems:
  • Fold Away systems can be deployed as needed, then folded away when done
  • Swing Arm systems provide circular or semicircular fall protection
  • Available in Wall Mounted, Column Mounted or Free Standing designs
  • Arm spans available up to 20' of Fold Away and 30' on Swing Arm systems
  • Designed for multiple workers up to 310 lbs each

Ranger Mobile Anchor

The versatile Ranger Mobile Anchor line from Gorbel provides the necessary anchorage point right where you need it, indoors or out. Available in two models, the Ranger is perfect for use when maintaining aircraft, railroad cars, industrial equipment or heavy machinery. This new addition to the Tether Track brand of fall protection systems can be easily moved into position and erected. The Ranger's sleek, balanced design allows for easy towing and transport to and around the job site.

Both Ranger models have an adjustable height 2-in. ball coupler that attaches to trucks, or related towing devices. The base model includes integral fork pockets allowing for smooth loading and unloading during transport or for general movement via fork lift. All components are easily accessible at ground level for quick adjustment. Mast extends in a direct path for use in tight environments.


Features:
  • Easy to position with mast in folded position or fully deployed
  • Fully extends to 18, 20, or 22 ft. height to address a wide range of jobs
  • Allows single user to move freely within a 30 degree work angle in all directions
  • Rugged steel construction and components for superior strength
  • Resilient finish to withstand harsh outdoor and indoor environments
  • Rated for highway towing up to 65 mph (Road Ranger model)
