Jib Cranes - Performance I-Beam

Gorbel's I-Beam Jibs are superior to utility jibs. The easy rotation and superior standard deflection allow workers to position loads safely and easily. Available in motorized or manual rotation.

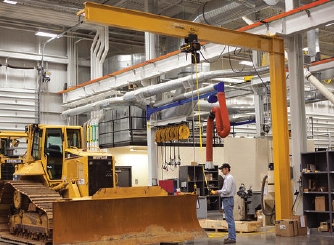

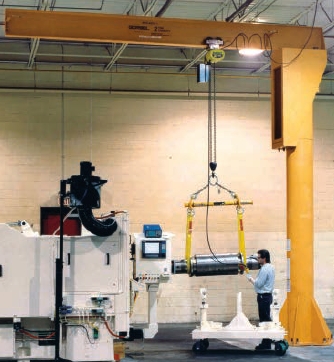

Free Standing:
  • Capacities from 1/4 ton to 5 tons, with heights and spans up to 20 ft. Contact us for additional heights, spans and capacities
  • Floor-mounted or insert style
  • Versatile cranes well-suited for use beneath traveling cranes, in open areas where they serve several work areas, in outdoor applications, and in machining and assembly operations.

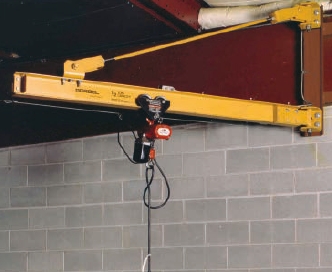

Wall Bracket:
  • Capacities from 1/4 ton to 5 tons, with spans up to 30 ft. Contact us for additional heights, spans and capacities
  • Economically provides hoist coverage for individual use in bays, along walls or columns, or as a supplement to an overhead crane or monorail system
  • Requires structurally adequate wall or column to support the jib
  • Requires sufficient clearance above the boom throughout its arc to accommodate the tie rod suspension


Wall Cantilever:
  • Capacities from 1/4 ton to 5 tons, with spans up to 20 ft. Contact us for additional heights, spans and capacities
  • Used instead of a wall bracket jib crane when headroom is at a premium
  • Provides hoist coverage for individual use in bays, along walls or columns, and as a supplement to an overhead crane or monorail system
  • Requires a structurally adequate wall or column to support the jib


Mast-Type:
  • Capacities from 1/4 ton to 5 tons, with spans up to 20 ft. Contact us for additional heights, spans and capacities
  • Typically do not require special foundations
  • Floor-supported, top-stabilized cranes capable of 360-degree rotation via a top and bottom bearing assembly
  • Provides for dramatically reduced forces to supporting structures
  • Full Cantilever and Drop Cantilever styles


Work Station:
Ceiling Mount Crane


When a work area must be free from any support structures that may interfere with operations, Ceiling Mounted Bridge Cranes are an excellent solution to keeping floors clear. Handling capaicities up to 4,000 pounds with overall bridge lengths up to 34 feet, these systems are pre-engineered and modularly designed for easy installation, expansion and relocation.
Learn More

Work Station:
Free Standing Crane


Gorbel Free Standing Work Station Bridge Cranes can handle the toughest overhead lifting tasks.

These cranes, which can be installed on any normal 6-inch reinforced concrete floor, feature a pre-engineered modular design that can easily expand as your work centers expand.
Learn More

Jib Cranes:
Work Station


Work Station Jib Cranes are the ideal substitute for traditional, heavy I-Beam jib cranes. These jibs are designed to service circular areas and support tool balancers, air balancers, vacuum lifters and hoists. When column or wall mounted, they can handle up to a 200 degree rotation. When floor mounted, they can accommodate up to a 360 degree rotation.
Learn More

Jib Cranes:
Articulating


This versatile crane can move loads around corners, reach into machines or doorways, and swing under obstructions. This crane is also perfect in applications that require an operator to rotate the jib in close to its pivot point. Capacities from 150 pounds to 2,000 pounds with spans up to 16 feet. Available in free standing, ceiling and wall mounted.
Learn More

Jib Cranes:
Gantry


Gorbel's Fixed and Adjustable Height Steel Gantry Cranes provide an economical way to lift materials anywhere in a facility. Gorbel's heavy duty end frame design with square tubing uprights, knee braces and channel base provides stable lifting and movement.
Learn More

Jib Cranes:
Performance I-Beam


Gorbel's I-Beam Jibs are superior to utility jobs. The easy rotation and superior standard deflection allow workers to position loads safely and easily. Availabe in motorized or manual rotation.
Learn More

Tether Track
Fall Arrest


Tether Track Rigid Rail Fall Arrest Anchor Systems are a cost effective way to reduce the risk of injury in elevated work environments. Standard systems are designed to support multiple workers, each weighing up to 310 pounds.
Learn More

Electric
Chain Hoists


Our hoist line offers a wide range of models in different speeds and capabilities to best meet your needs. Their rugged construction makes them ideal for both high production environments and those applications requiring only periodic lifting and positioning.
Learn More

Cleveland
Tramrail


Cleveland Tramrail's unique patented Tarca Track System continues to be the benchmark of the overhead material handling industry. This system offers unmatched versatility, durability and ease of installation.
Learn More

Industrial
Lift Magnets


We offer a variety of lift magnets to suite a wide range of needs, including permanent ceramic lift magnets and permanent rare earth lift magnets. We also carry a complete line of materials handling magnets.
Learn More

Intelligent
Lift Devices


The new Intelligent Lifting Devices consist of Gorbel's G-Force, G-Jib, and the Easy Arm. Gorbel developed new advanced patented technology that their engineers created with an industrial processor controlled servo drive structure.
Learn More



If you have questions regarding any of our crane products, please give us a call at 618-409-3233.

Why choose Gorbel Cranes?

Gorbel Crane Logo
Gorbel's Crane Technology and Ergonomic Lifting products are the handling equipment you need to get the job done. Since 1977, Gorbel has specialized in overhead material handling solutions, earning a reputation for providing our customers with the highest quality products and the highest performance.

Our product line has grown to include a number of products that improve safety and productivity in today's industrial environment. We offer bridge cranes and monorails in capacities to 20 tons, jibs in capacities to 5 tons in a variety of mounting styles, mobile gantries, Intelligent Lifting Devices, and rigid rail worker fall arrest anchor systems.

Gorbel is committed to continuous improvement in both our products and our service. We would love to work with you to find a solution that best fits your needs and budget, and look forward to the day when you join the ranks of our many satisfied customers.



FREE
Crane Product
Quotes!


We're a licensed distributor of Gorbel's Overhead Crane and Lifting Products. We offer bridge cranes and monorails in capacities to 20 tons, jibs in capabilities to 5 tons in a variety of mounting styles, mobile gantries, Intelligent Lifting Devices, and rigid rail worker fall arrest anchor systems.


Proudly providing Gorbel overhead cranes and accessories to the following areas: Illinois (IL), Missouri (MO), Indianna (IN), Ohio (OH), Kentucky (KY), Arkansas (AR), Kansas (KS), Nebraska (NE), Michigan (MI), Wisconsin (WI), Iowa (IA), Tennessee (TN), and surrounding communities.
